Calbond (Atkore)

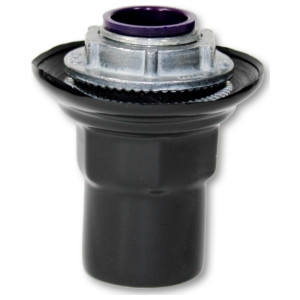

Conduit Hub, PVC Coated, 2 in.
MFR #: PV2000ST6
SKU: 25568433
UPC: 47656076214
Conduit Hub, PVC (Coated), Trade Size (Inches): 2 in, Nom. Length (Inches): 3.75 in, Diameter (Inches): 4.25 in
Conduit Hubs
- PVC coating and internal urethane coating provide for superior corrosion protection.
- Electrical continuity is maintained across assembled joints.
- Exterior PVC coating thickness is a minimum 0.040 inch
- Interior Urethane coating thickness is a minimum 0.002 inch
- Sealing sleeves on conduit side of hub
- Molded PVC gasket seals flush with enclosure wall
- Neoprene O-ring gasket provides additional seal
- The length of the sleeve extension(s) shall be at least equivalent to the nominal conduit size for sizes 1/2 to 2 inch. For sizes 2-1/2 to 6 inch, the length of the sleeve extension(s) shall be at least 2 inch
- Standards: UL 514B, NEC/CEC: Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2, Class I, Zone 1, AEx e II, and Class I, Zone 1, Ex e II
- All Screw-tight Hubs are listed for NEMA type enclosures 2, 3, 3R, 4, 4x, 11 and 12
Resources
Product Details
Country of Origin
United States
ECCN
EAR99
UPC
47656076214
UNSPSC
39121311
Use With
Conduit; NEMA Type Enclosures 2, 3, 3R, 4, 4x, 11 and 12
